Zega

ZEGA LED Module: DISC Series

$20.99 CAD
$28.99 CAD
$20.99 CAD
Shipping calculated at checkout.
Title

PLEASE PAY ATTENTION TO THE DIAMETER OF THE DISCS. WE ARE UNABLE TO RESPONSE THE MISTAKES THAT YOU CHOSE WRONG SIZES.

Please contact us if you are uncertain about the diameters. Thank you.

High-Performance SMD Driverless LED Light Engines.

Model#

(Note)

Dimensions

(mm)

Input

Voltage

(V)

Power

(W)

Lumen

Output

(lm)

 CCT CRI

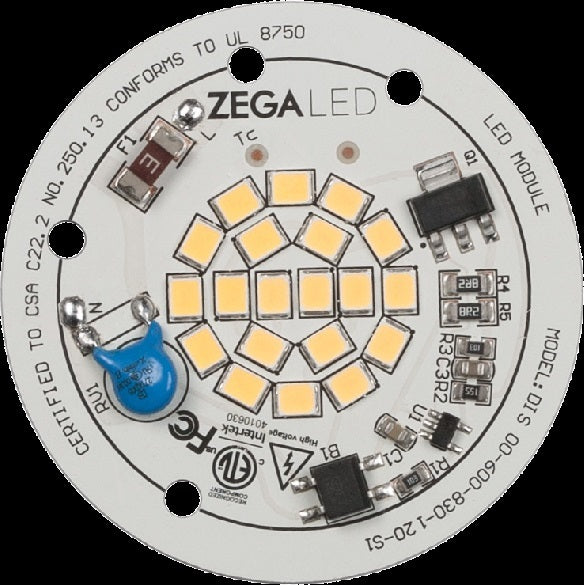

DIS00-400-830  D50 120 4.5 400 3000K 80
DIS01-400-830

D50

120

4.5

400

 3000K 80

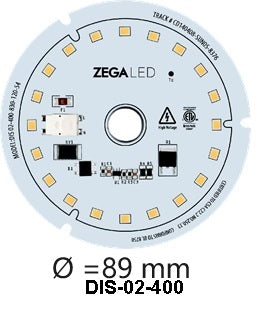

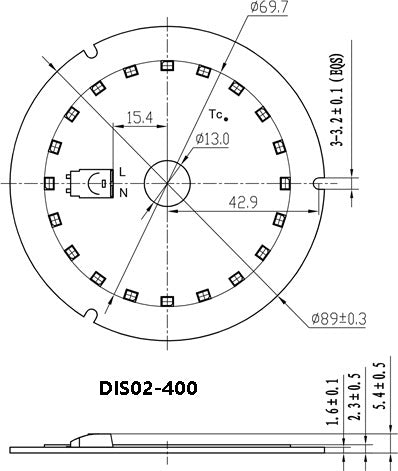

DIS02-400-830

D89

120

4.5

400

 3000K

80

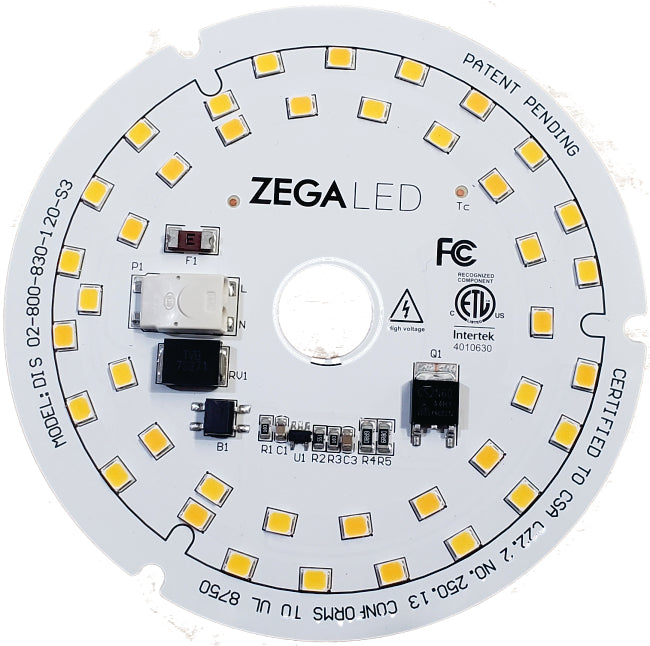

DIS02-800-830 D89 120 9 800 3000K 80

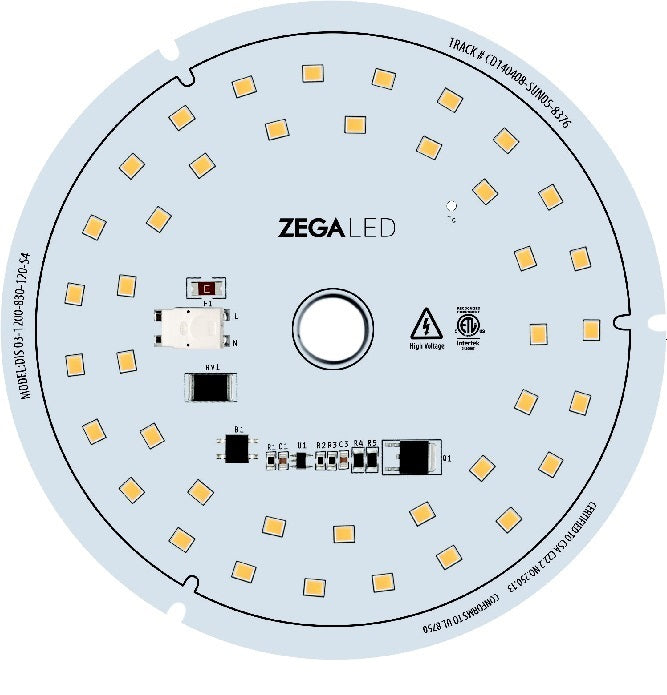

DIS03-600-830 D125 120 7 600 3000K 80
DIS03-800-830 D125 120 9 800 3000K 80

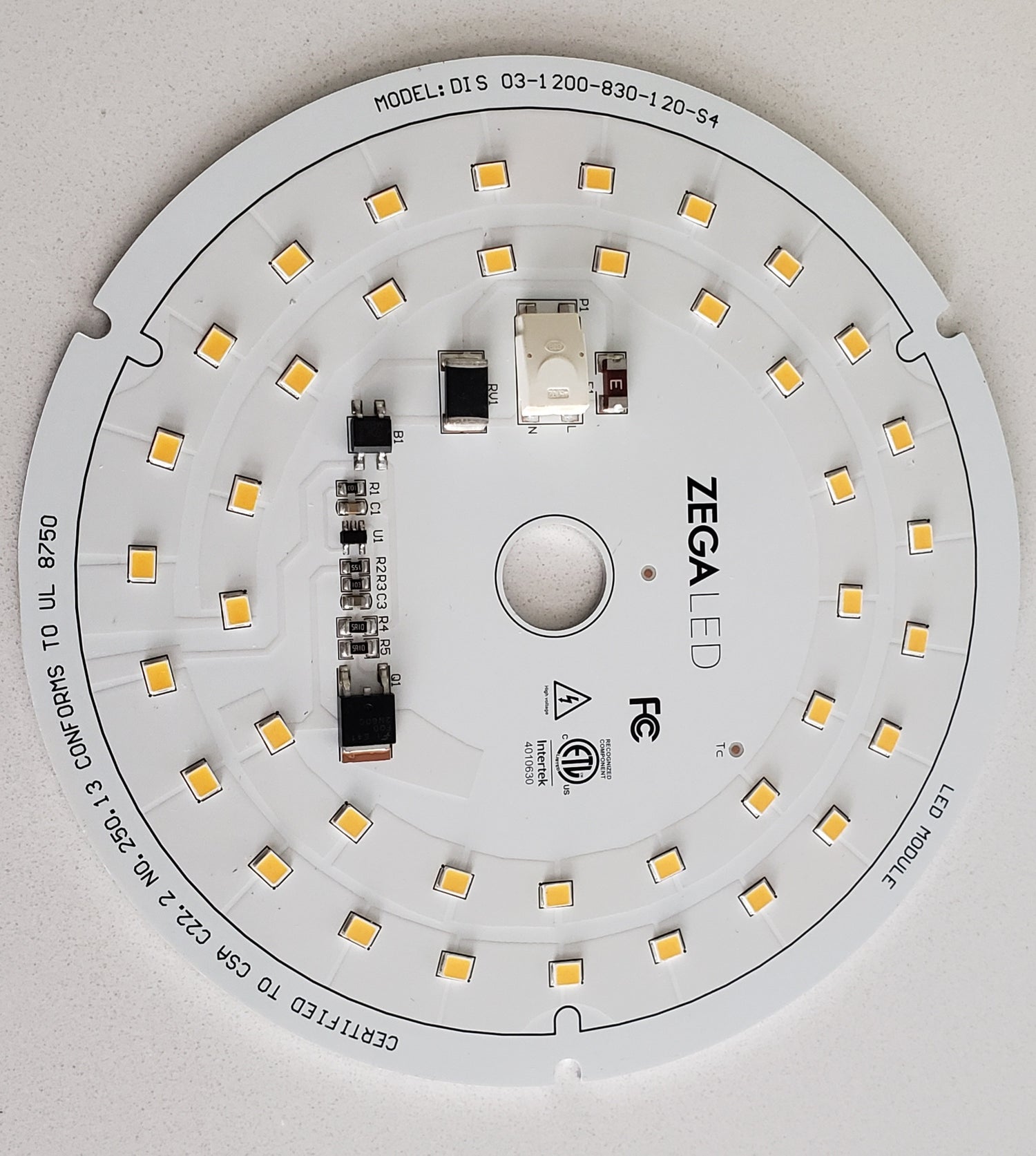

DIS03-1200-830 D125 120 15 1200 3000K 80
DIS03-3000-830 D125 120 34.5 3000 3000K 80

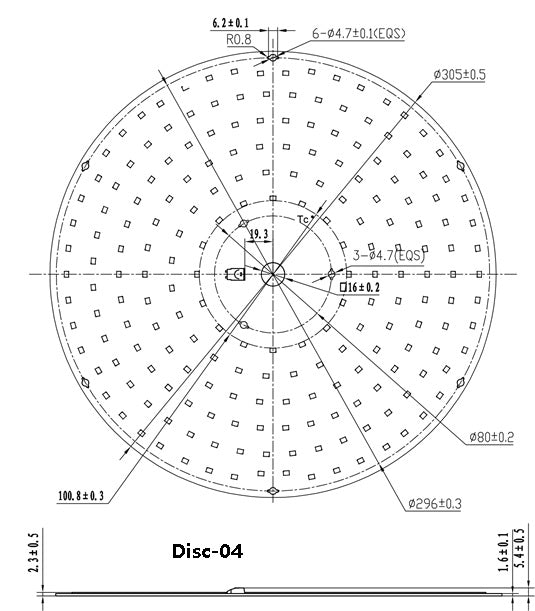

DIS04-4000-830

D305

120

45

4000

 3000K 80





Note

* DIS00 and DIS01 have no wire lead. If needed, please request when placing orders.

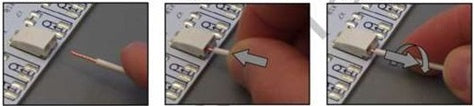

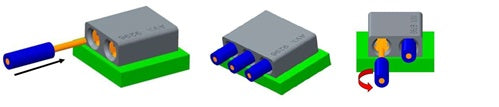

* DIS02 and above have the wire connector

Warning:

Danger of electric shock. Professional installation is required.
